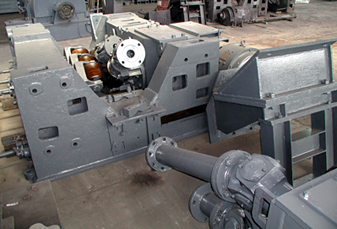

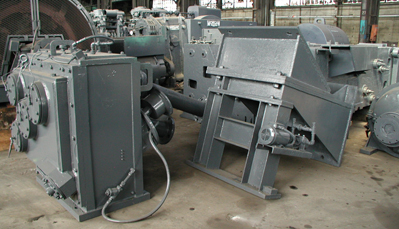

Mfg:
Sutton Engineering Co.
Equipment No. A-38-002  J.O. A-6
Equipment No. Y-38-002  J.O. Y-34

Capacity:
Solid Steel Bar:         2 ½” – 4 ½”
Tubing and Piping:    2 ½” – 6”

Bearings:  Antifriction throughout

Construction:  Cast Steel

Rolls:
Two Driven:    16” x 13.9” dia. x 22 ¼” L with 6” neck dia.
Three Idler:     11 ½” dia. x 12-3/8” L with 5-3/8” neck dia.

Drive:
The two driven rolls are driven through
a totally enclosed, oil immersed gear box
and universal spindles.

Motor:
75/100 HP, 300/1200 RPM, 230 V. DC

Dimensions:
16’5 ½” L x 10’3 ½” W x 9’5” H
