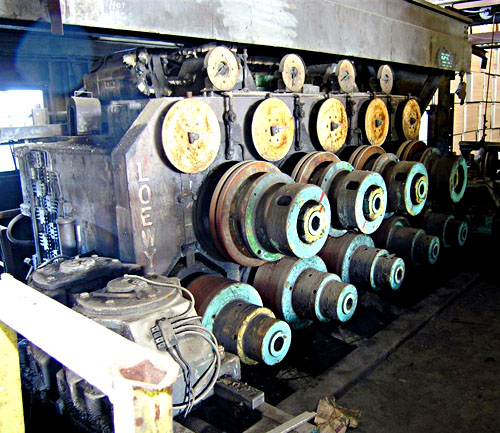

- 9 ROLL LOEWY STRUCTURAL STRAIGHTENER
1
- 9 ROLL LOEWY STRUCTURAL STRAIGHTENER
|
AGE:
1955
|
MODEL:
RSM9 - 34
|
|
CROSS
ACTION PREVIOUSLY STRAIGHTENED:
Up to 21 sq. in.
|
|
ROLLS:
4 top, overhung, driven, ( 2 ) 75/135 HP, 575 RPM, Frame 612, 230 V. DC 5 bottom, individual motorized vertical adjustment 10 HP, 230 V. DC, MC602, w/ entry bottom roll driven 7 - 1/2 HP, 230 V. DC, MC602 Lateral I Adustment - all rolls Top - motorized, 1 HP 760 RPM, 230 V. DC |
|
DISTANCE
BETWEEN CENTERS:
|
Horizontal - 34" | Vertical - 34.5" max., 26.5" min. |
|
ROLL
NECK:
|
Diameter -
12"
|
Length - 18-3/4"
|
|
ROLL
ADJUSTMENT:
|
8" Vertical
|
1.5"
L ateral
|
