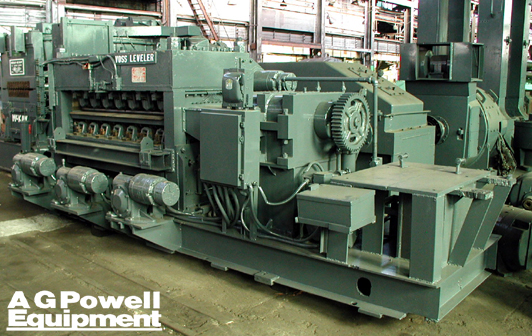

Mfg: Voss
|
|
Type: 66/1.687-19/7-L.H.
Inverted – Bottom rolls move
up and down
|
|
Serial No.:
120-LL2289
|
|
Material Thickness:
.017” - .107”
|
|
Speed: 50/360
FPM
|
|
Back Up Rolls:
No. of Flights: 7
No. of Flights
Adjustable: 5
Method of Adjustment: 5
top rolls adjusted with one motor
(2 HP, 1145 RPM, 220/440 V., 3/60
gear motor with Stearns Brake)
5 bottom rolls adjusted with hand crank
|
|
|
Roll Height Adjustment: Motorized
Motor: 2 HP, 1680 RPM, 208/220/440 V.,
G. E. Triclad Gear Motor With Stearns Brake
|
|
Radial Tilt:
Motorized
Motor: 2 HP, 1680 RPM, 208/220/440 V.,
G. E. Triclad Gear Motor With Stearns Brake
|
|
EQUIPMENT
Control Panel
Oil Pump
Entry Deflector
Roll
|
|
