Mfg: Mitsubishi
Age: 1963 - Revamped 1978

Coil Information:
Material: Stainless Steel, AISI 300/400 Series
Width: 620 mm - 1280 mm (24.5" - 50.39")
Thickness: .2 mm to 3 mm (.008" to 1.118")
I.D.: 508 mm (20")
O.D.: 1300 mm (51")
Coil Weight: 6,600 kg (15,000 lbs.)

Line Speed:
Entry Section: 2 - 33.5 m/min. (6.6 to 110 FPM)
Center Section: 4 - 30 m/min. (13 to 98 FPM)
Delivery Section: 4 - 33.5 m/min. (13 to 110 FPM)
Jogging Speed: 30 m/min. (98 FPM)

Major Equipment:
(2) Pay Off reels:
Mandrel Type with Coil Cars
Expansion: 430 to 530 mm (17" - 20.8")

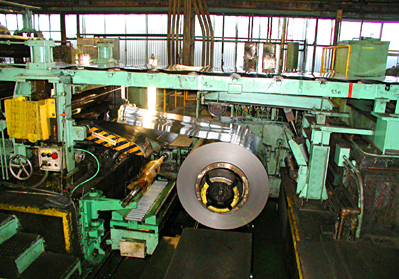

(2) Pay Off Pinch Rolls
3-Roll Flattener Unit
Welder: 1 - 12 m/min.
Looping Tower

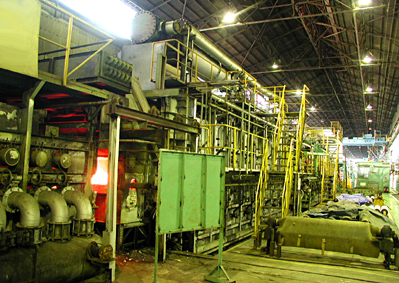

Annealing Furnace:
Type: Caterina, direct heat
Fuel: LPG
Effective Length: 21 m
Air Cooling Tank
Salt Bath
Rinse Unit

(3) Seperate Driven Bridle Units
(2) Seperate Scrubber Units
(1) Electrolytic Tank
(1) Soaking Tank
No. 2 Vertical Looper
Shear

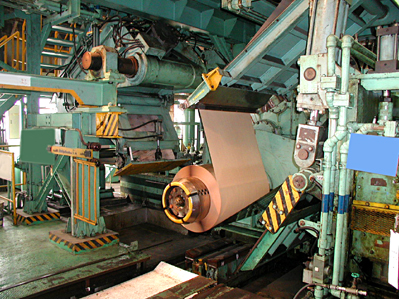

Recoiler : Expansion - 483 - 508 m (19" - 20")
Overall Lenght of Line: Approximately 500 feet
