Mfg:  Blawknox

Age:  1964

Type:  High Lift

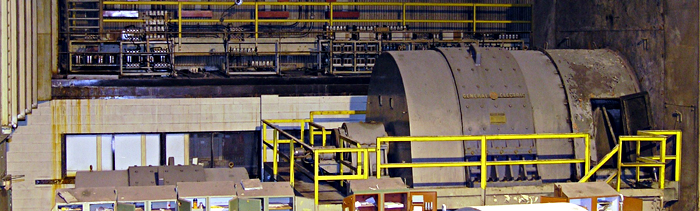

Top & Bottom Drive Motors:  4000 HP, 520 RPM, 700 V.

Equipment:
   Entry Table:
      (12) Rolls, 3’ centerline, 33’ long
      Table Speed:  650/1300 FPM
      Drive:  (2) 75/100 HP, Frame 612 Motors, 515/1030 RPM
   Front Reversing Table:
      (9) 18” dia. x 96” Rolls, 3’ centerline, 24’ long
      Individual Drive Motors:  29.2/58.4 HP, Frame 612 Motors, 193/386 RPM
   (3) Entry & (2) Exit Feed Rolls:
      18” x 96” Rolls, 30” centerline
      Individual Drive Motors:  29.2/58.4 HP, Frame 612 Motors, 193/386 RPM

   Back Reversing Table:
      (9) 18” dia. x 96” Rolls, 3’ centerline, 24’ long
      Individual Drive Motors:  29.2/58.4 HP, Frame 612 Motors, 193/386 RPM

   Exit Table:
      (12) Rolls, 3’ centerline, 33’ long
      Table Speed:  650/1300 FPM
      Drive:  (2) 75/100 HP, Frame 612 Motors, 515/1030 RPM

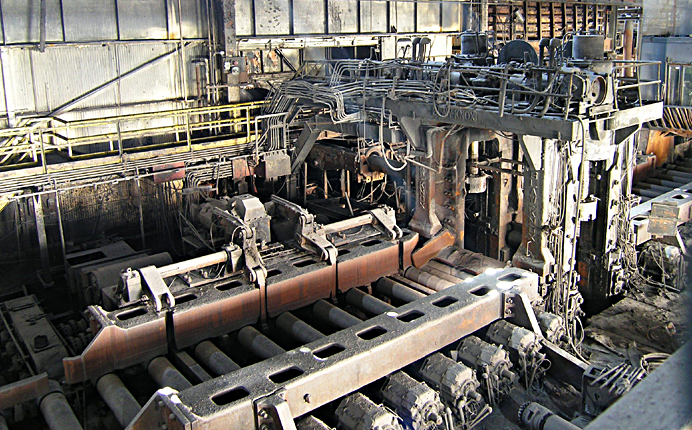

   Front & Back Manipulators with Side Frames and Lifting Fingers Each Side:
      Side Frame Drives:  (2) 75 HP, Frame 612 Motors each side, 515/1030 RPM

(1)   Finger Lift Drive Each Side:  100 HP, Frame 614 Motor, 485 RPM

   Electromechanical Screwdowns:
      Motors:  (2) 100 HP, Frame 612 Motors, 485 RPM

   Electromechanical Roll Changing Rig:
      Drive:  75 HP, Frame 612 Motor, 515 RPM

   Roll Balance – Counter Weight:
   Full complement of spare rolls, chocks, bearings, plus associated electrical and mechanical spares.
