300,000 TPY BAR MILL

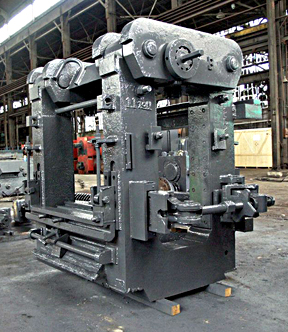

21 inch Ferrco Roughing Stand

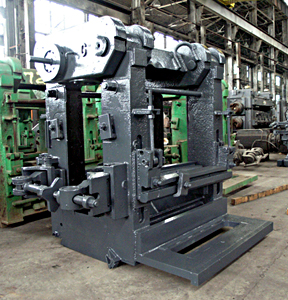

14 inch Ferrco Stand
meet-china
http://www.chinayangtze.com

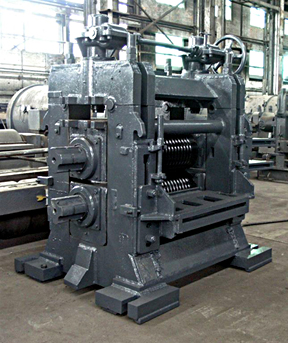

One of 11 Danieli 12 Inch Stands

Mfg: Ferrco/Danieli
Age: 1975/1990
Material: 150mm square billet
Products: Previously Rolled: No. 4 through No. 18 Reinforcing Bar

EQUIPMENT
Note : All stands horizontal configuration with roller bearings.
(3) 21" Ferrco Mill Stands
(6) 16" Ferrco Mill Stands
(3) 14" Ferrco Mill Stands
(43) Rolls with Chocks and Roller Bearings
(9) Hepburn (U.K.) Combination Gear and Pinion Stands:
- 2 x 533, 300 KW, 79.89:1 and 61.45:1 ratios
- 2 x 406mm, 500 KW, 36.12:1 and 20.67:1 ratios
- 1 x 406mm, 300 KW, 14.56:1 ratio
- 2 x 406mm, 450 KW, 11.13:1 and 8.017:1 ratios
- 2 x 355mm, 450 KW, 6.22:1 and 5.11:1 ratios
All required Spindles, Spindle Carriers, Couplers, and Shoeplates available.
(11) 12" Danieli Mill Stands
(50) Rolls with Chocks and Roller Bearings for Danieli Stands
(3) Danieli Roller Bearing 12" Pinion Stands
Intermediate Flying Shear, Crop and Cobble Shear, and CV30 Finishing Shear
200' x 30' Double Sided Danieli Cooling Bed (1986)
with (2) Product Shears and Gauges
Motors:
Mfg: ABB & BBC
Volts: 600 D.C.
Ball Bearing, Water Cooled, Mill Duty
(3) 500 KW, 510 - 1165 RPM
(4) 450 KW, 400 - 800 RPM
(7) 300 KW, 400 - 800 RPM
SCR Drives:
(9) Available
Mfg: ABB (1995)


Ferrco Combination Gear & Pinion

Danieli 12 inch Pinion Stands

BBC & ABB DC Drive Motors

Intermediate Flying Shear

Danieli Flying Finish Shear CV30

Bar Mill SCR Drives

Planet Deformation Generator

Finishing Roll Turning Lathe

200 x 300 Danieli walking beam two sided cooling bed
