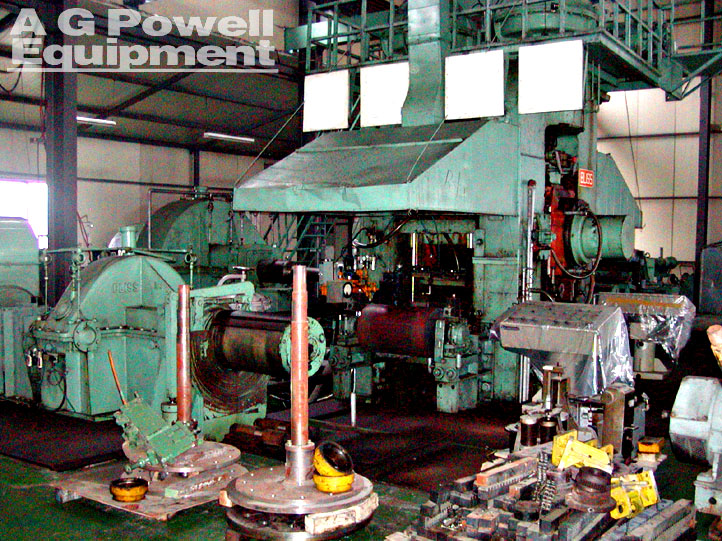

Mfg:  Bliss
Age:    1983
            New SCR Electrical System – 1997

Material Previously Rolled:
   Stainless 300 & 400 Series
   Incoming Material:  Max. Gauge .165” (4.2 mm)
   Coil Width:  29 ½” (750 mm)
   Coil Weight:  7 MT (15,400 lbs.)
Rolling Speed:  Max. 150 m/min. (492 FPM)
Rolling Load:  280 MT

Equipment:
   Mandrel Type Pay Off Reel:
      Mfg:  Bliss
   (2) Reversing Coilers:
      I.D.:  508 mm (20”)
      O.D.:  1400 mm (55”)
      Type:  Hydraulically Expandable Mandrel
      Each equipped with In Ground Coil Car
      Motor:  200 HP (150 KW), 300/1200 RPM, DC
      Coiler Reducer:  8.17:1 ratio
   Mill:
      Window Opening:  3543 mm x 965 mm (139 ½” x 38”)
      Bearings:  Roller on both work and back up
      Electromechanical Screwdowns
      Deflector Roll, entry & exit
      Main Drive Motor:  700 HP (530 KW), 300/1000 RPM
      Combination Gear & Pinion Unit:  6.29:1 ratio
   Spare Work & Back Up Rolls, Chocks, and Bearings available.
